Stanley Magic-Force / M-Force

Primary identifier: Stanley M-Force swing operator · Status: active

Parts, controls, operators, encoders, switches, mechanical components, and identification references for Stanley Magic-Force / M-Force swing systems.

Automatic swinging door
System type
Automatic Swing
Indexed components
14 indexed components
Control generations
iQ
Last reviewed
Aug 15, 2026

Parts & Components

Indexed components for this system. They are identification and search cues — verify revision and configuration before ordering.

14 components

Higher-priority identification

Controls

  • Stanley Access Technologies 314315 iQ M-Force Controller Dual Kit
    314315

    iQ M-Force Controller Dual Kit

    iQ M-Force dual controller kit

    Controls

    Identification

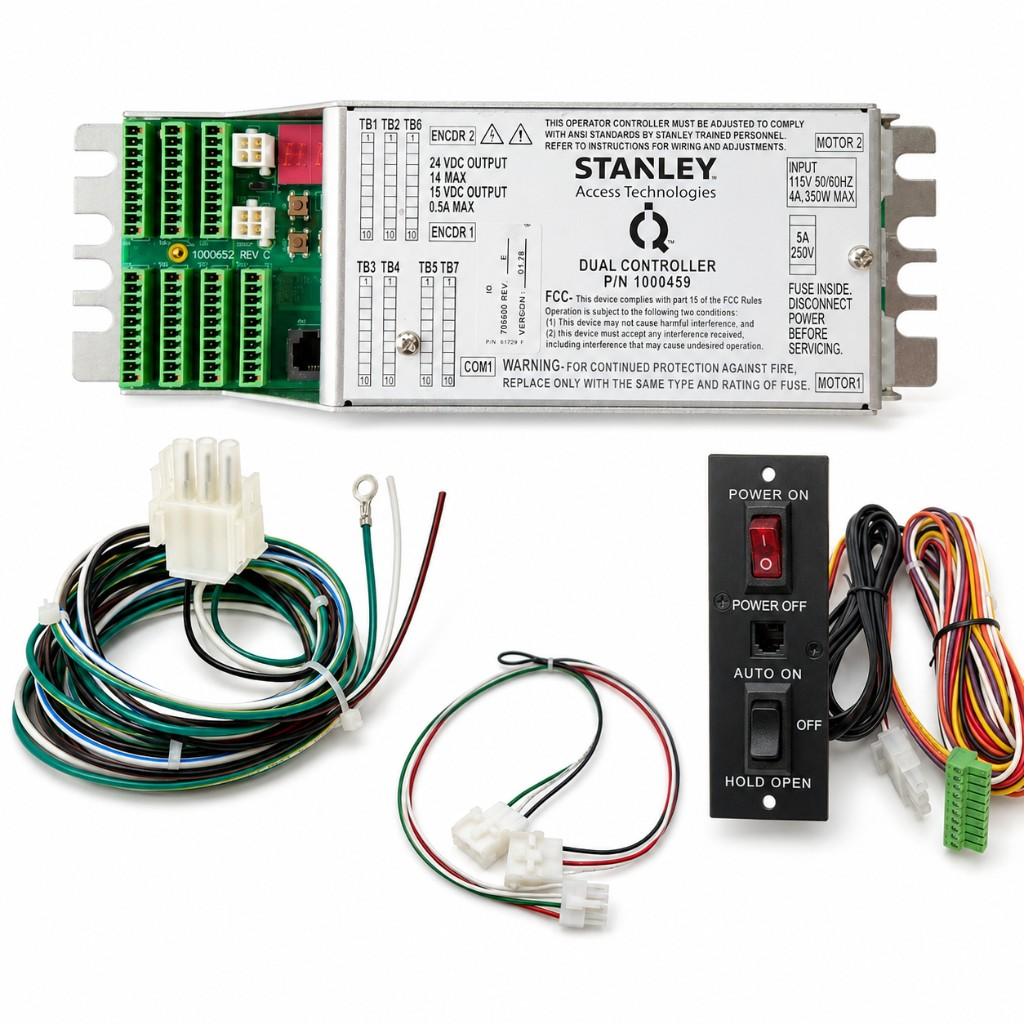

    Owner-identified kit photo: silver Dual Controller housing labeled STANLEY Access Technologies Dual Controller P/N 1000459, with Motor 1/2 and Encoder 1/2 cutouts, TB1–TB7, a red status display, and an RJ port. The kit also includes a black POWER ON/OFF and AUTO ON / OFF / HOLD OPEN switch panel with harness, plus additional wiring harnesses. Photograph the kit identity separately from the 1000459 housing label.

    Do not confuse with: Not Dura-Glide iQ dual kit 314321; not an MC521 board; not single-motor 1000459-1. A housing labeled 1000459 is not proof this is a 314321 kit.

    Also documented with: Bifold · Compatibility not implied

    Source · AutoDoor Atlas field photo

    Sources & notes

    AutoDoor Atlas field photo: Original AutoDoor Atlas photograph of the owner-identified Stanley 314315 iQ M-Force dual controller kit (2026-08-18). Visible Dual Controller housing P/N is 1000459. Documented with Magic-Force and Bifold. Verify the installed kit and header; do not treat a 1000459 label as drop-in fitment or as Dura-Glide kit 314321.

    Documented with Stanley Magic-Force / M-Force and with Stanley Bifold. Not inferred onto every swing or bifold revision. Distinct from Dura-Glide iQ dual kit 314321. Verify the installed controller face PN and operator plates.

Operators

  • Stanley Access Technologies 1000498 Motor Assembly
    1000498

    Motor Assembly

    Magic Force operator / motor

    Operators

    Identification

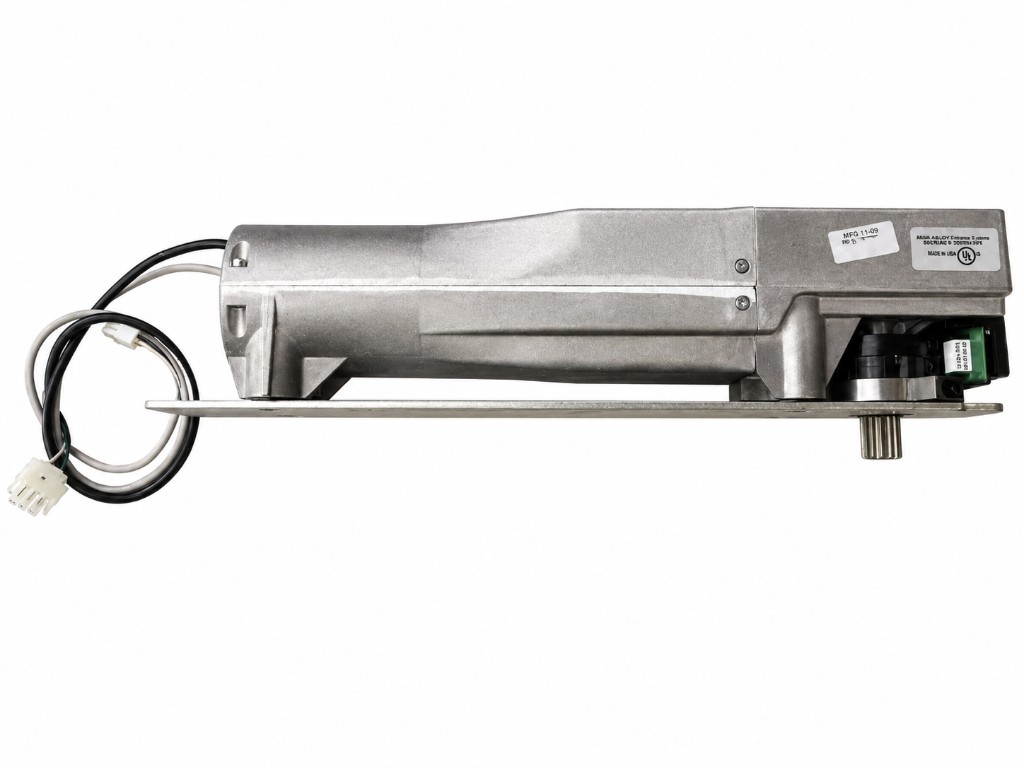

    Owner-identified Magic Force operator/motor. Visible labels: ASSA ABLOY Entrance Systems and MFG 11-09. Photograph the encoder face separately — this side view does not by itself prove iQ 314309 versus pre-iQ 313852.

    Source · AutoDoor Atlas field photo

    Sources & notes

    AutoDoor Atlas field photo: Owner-supplied field identification list (2026-08-15) as motor assembly 1000498, with an original AutoDoor Atlas photograph (2026-08-17). Visible labels: ASSA ABLOY Entrance Systems, MFG 11-09.

  • 313852

    Magic-Force operator (pre-iQ, black-face encoder)

    pre-iQ M-Force operator

    Operators

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification (2026-08-15) distinguishing 314309 (iQ / white-face 314327) from 313852 (pre-iQ / black-face encoders).

    Owner-supplied: pre-iQ Magic-Force operator with black-face lower-resolution encoders for pre-iQ control boards. Not a drop-in match for iQ operator 314309 / encoder 314327.

  • Stanley Access Technologies 314309 iQ M-Force Operator
    314309

    iQ M-Force Operator

    iQ M-Force operator

    Operators

    Also documented with: Bifold · Compatibility not implied

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Also appears in the project research index of the Stanley/Allegion Replacement Parts Book (Oct 2024) and/or DCUSA notes — PDFs are not hosted here. Verify header/operator plates; do not treat a number match as drop-in fitment.

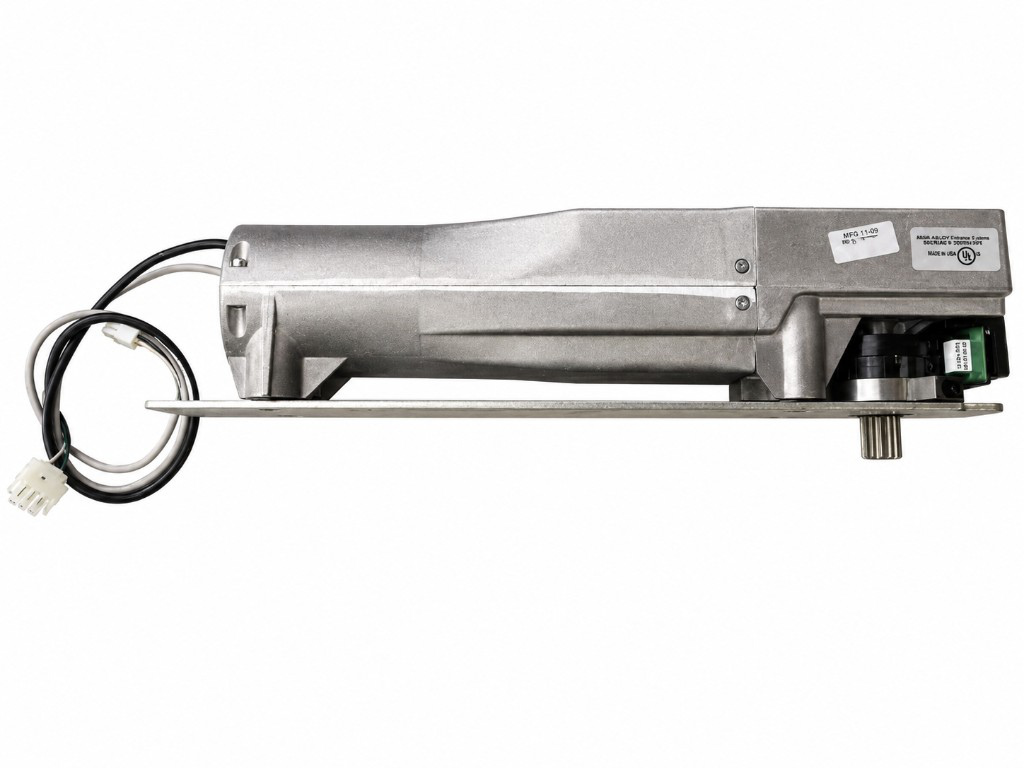

    Complete iQ-generation Magic-Force / M-Force operator, not a lone PCB. Uses white-face higher-resolution encoder kit 314327. Listed for Bifold in owner material as well — verify bifold revision/configuration; do not assume every bifold uses this operator. Not pre-iQ operator 313852.

Encoders

  • Stanley Access Technologies 314327 iQ Encoder & Magnet Kit
    314327

    iQ Encoder & Magnet Kit

    iQ encoder/magnet

    Encoders

    Do not confuse with: Not the main operator controller.

    Also documented with: Dura-Glide 2000/3000, Bifold, DuraFit Telescopic, Dura-Glide 5200/5300 · Compatibility not implied

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Also appears in the project research index of the Stanley/Allegion Replacement Parts Book (Oct 2024) and/or DCUSA notes — PDFs are not hosted here. Verify header/operator plates; do not treat a number match as drop-in fitment.

    Shared iQ-generation encoder kit. Listed on the 2000/3000 parts-book index, the owner 5200/5300 list, and the DuraFit Telescopic header list (KIT, ENCODER-MAGNET-iQ-RPC) — photograph the header model. On Magic-Force, pair with operator 314309 (white-face / higher-resolution) and iQ controllers — not pre-iQ operator 313852 black-face encoders. Verify operator or header generation before ordering.

Switches

  • 191841

    Switch Module Assembly

    Switches

    Also documented with: Bifold · Compatibility not implied

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

    Listed for M-Force and Bifold in owner material. Verify the switch module against the installed operator generation before ordering.

  • 516783

    Cam-Switch Assembly Kit

    Switches

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

Additional listed components

Controls

  • Stanley Access Technologies 517864 iQ-style close-speed control module
    517864

    iQ-style close-speed control module

    close-speed option board

    Controls · option module

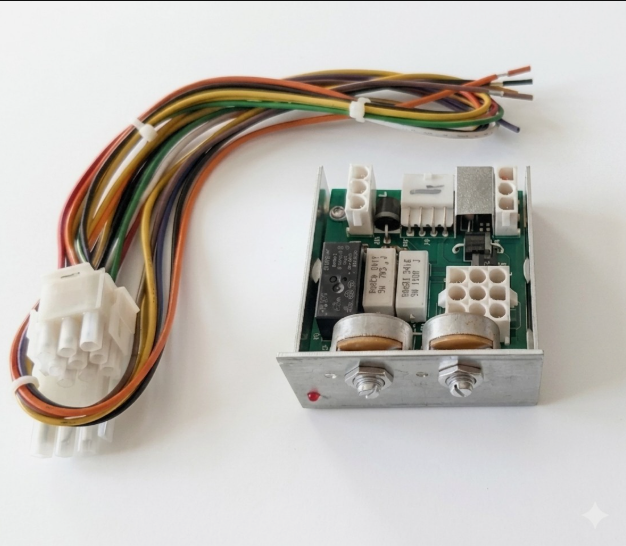

    Do not confuse with: 9-pin “new iQ style” close-speed module with speed pots — not the main Magic-Force operator controller.

    Source · AutoDoor Atlas field photo

    Sources & notes

    AutoDoor Atlas field photo: Original AutoDoor Atlas photograph of the labeled assembly. Recorded as a Magic-Force option/accessory identity — not a Dura-Glide controller and not the main Magic-Force operator board. Verify the operator plates and harness before treating as a drop-in.

Header & Mechanical

  • 112035

    Breakout Cam

    Header & Mechanical

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

  • 112036

    Auxiliary Cam

    Header & Mechanical

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

  • 112038

    Latch Cam

    Header & Mechanical

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

  • 112039

    Stop Cam

    Header & Mechanical

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

  • 112040

    Cam Collar

    Header & Mechanical

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

  • 712811

    M-Force Rubber Mount

    Header & Mechanical

    Source · Owner field identification

    Sources & notes

    Owner field identification: Owner-supplied field identification list (2026-08-15). Listed for this family in the referenced parts material; verify revision and configuration before ordering.

Reference photos

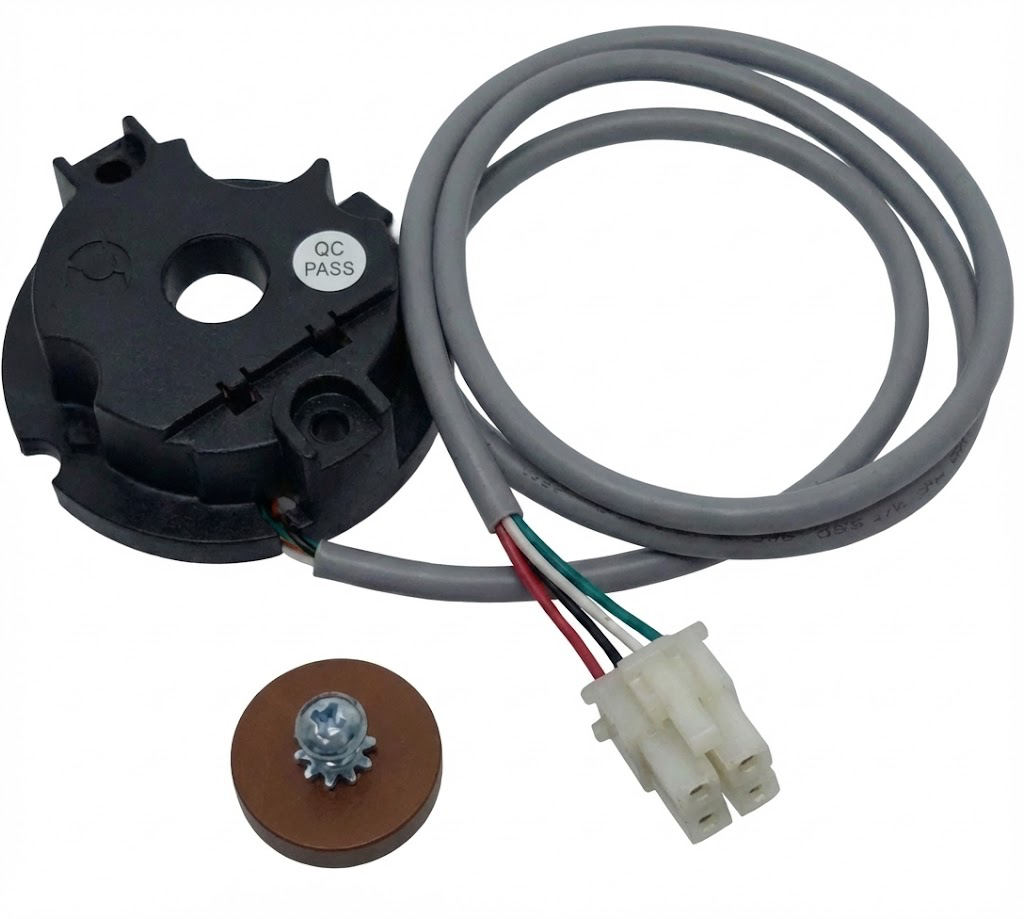

Stanley motor encoder and magnet kit with black housing, grey cable, and 4-pin connector
Black-housing / lower-resolution encoder style associated with pre-iQ Magic-Force operators (313852). Not the white-face 314327 iQ encoder used on operator 314309; photograph the encoder face and connector before ordering. — Original photo created by AutoDoor Atlas

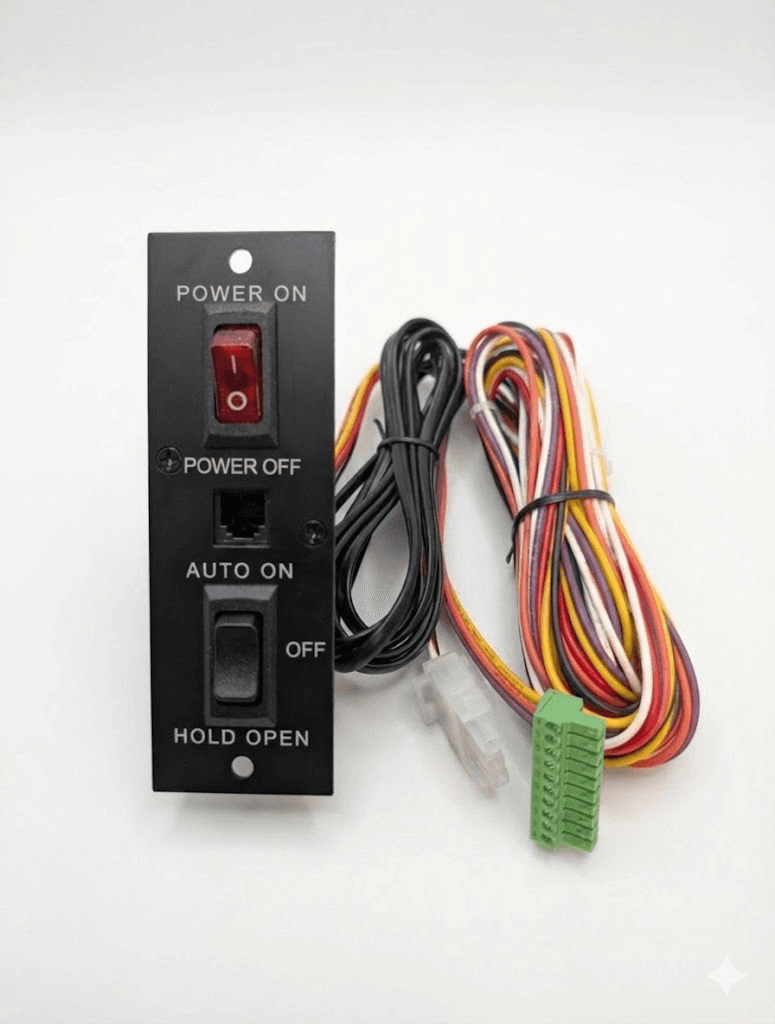

Stanley Magic Swing power, function, and data-port switch assembly P/N 517940
Stanley Magic Swing door power / function / data-port switch assembly, P/N 517940. This is a jamb or header switch plate with harnesses — not the Magic-Force operator controller. Confirm operator family before buying a “swing control.” — Original photo created by AutoDoor Atlas

Identification

Aliases
  • Stanley M-Force swing operator family (common_name)
  • M-Force (oem)
  • Magic-Force operator (oem)
  • Stanley Magic-Force (common_name)
  • Stanley Magic Force Swing (common_name)
  • Stanley Magic Force operator (common_name)
  • Stanley Magic Force Control Boards (common_name)
  • iQ M-Force (oem)
  • 314315 (oem) — iQ M-Force dual controller kit. Also documented with Bifold. Not Dura-Glide kit 314321.
  • 314309 (oem) — iQ M-Force operator (often the complete operator).
  • 313852 (oem) — Pre-iQ Magic-Force operator with black-face encoders.
  • 517864 (oem) — “New iQ style” close-speed control module with 9-pin connector. Accessory/option board — not the main Magic-Force or iQ operator controller.
  • 517940 (mistaken) — Magic Swing power / function / data-port switch assembly — not the Magic-Force operator control. Common surplus mix-up with swing “control” listings.
  • R185000SW (mistaken) — DCUSA 2016 Magic Swing listing: “MC521, SWING, DIGITAL CONTROL.” Magic-Swing is not Magic-Force.
Labels & connectors to capture
  • Operator housing labels (ASSA ABLOY / Stanley Access, MFG date, serial)
  • Encoder face color at the splined shaft: white-face 314327 vs black-face pre-iQ
  • Controller in the header: iQ vs MC521 vs unknown
  • Cam stack and cam-switch kit identity if those parts are the sale
  • Motor connector and rubber mount condition
Common mistaken names
  • Dura-Glide sliding operators titled as M-Force
  • Magic-Swing or Magic-Access operators sold as M-Force
  • iQ 314309 operator assumed to work with a pre-iQ board (or 313852 with an iQ board)
Revision notesShow

iQ generation: operator 314309 + encoder 314327 (white face, higher resolution) + iQ dual controller kit 314315. Pre-iQ: operator 313852 + black-face lower-resolution encoders + pre-iQ control boards. Motor assembly 1000498, switch module 191841, and cam-switch kit 516783 are higher-priority catalog items than the individual cams. Individual cams (stop, auxiliary, latch, breakout, collar) are listed as catalog entries only.

Compatibility

Commercial swing automatic entrances using Stanley M-Force / Magic-Force operators. Distinct from Stanley sliding families and from Magic-Swing / Magic-Access lines.

Voltage: Read the installed controller and operator labels. Do not infer supply from a marketplace thumbnail of a different generation.

Stanley M-Force / Magic-Force swing packages (matching encoder and controller generation)

Compatible with caveats

314309 + 314327 belong with iQ controllers. 313852 belongs with pre-iQ boards and black-face encoders. Confirm generation on the unit.

Owner-supplied encoder/operator split (2026-08-15) plus Stanley/Allegion book identity for iQ M-Force operator 314309. PDFs not hosted.

Stanley Dura-Glide sliding packages

Not compatible

Swing M-Force operators are not sliding Dura-Glide operators. Shared encoder kit 314327 does not make the operators interchangeable.

Public product-line split between Magic-Force swing and Dura-Glide sliding; encoder kit sharing is not operator interchange.

Related systems & parts

Curated cross-links for identification context — not automatic compatibility claims.

Buying & Selling

No verified sold-comparable range published yet

Condition and value notesShow

  • Used — untested

    No verified sold-comparable table is published on this page. Asking prices, distributor list, and sold comps are different data kinds and are not inferred from each other.

    Qualitative guidance only — numeric value fields left null until a verified sold or list source is recorded.

  • Dead core / unknown working

    Unlabeled or mixed-generation cores are hard to place. Readable family plates and encoder/controller generation are the first filter.

    Owner field practice; no numeric core schedule published here.

Marketplace / supplier links

Seller guidanceShow

Photograph

  • Full operator side profile including splined shaft and encoder
  • Encoder face (white vs black) close-up
  • Any readable operator PN / serial / MFG sticker
  • Controller in the same opening if the lot is a teardown

Disclose

  • iQ 314309 vs pre-iQ 313852 when known
  • Whether motor, cams, switch module, or encoder are included
  • Tested vs untested

Title tips

  • Stanley + M-Force / Magic-Force + 314309 or 313852 + encoder face if visible
  • Do not title as Dura-Glide or Magic-Swing unless the plate says so
Buyer guidanceShow

Common mistakes

  • Pairing an iQ controller with a 313852 black-face encoder operator
  • Pairing a pre-iQ board with a 314309 / 314327 white-face encoder
  • Buying individual cams without confirming the cam-switch kit generation

Revision differences

  • 314309 (iQ operator, encoder 314327) vs 313852 (pre-iQ, black-face encoder)
  • Switch module 191841 and cam-switch kit 516783 are assemblies — not the same as a single cam

Verify before purchase

  • Encoder face color visible in photos
  • Operator PN or serial readable, or seller states 314309 vs 313852
  • Connector parity with the removed motor/encoder
  • Return path if generation is wrong

Used vs rebuilt: what buyers should verify

Sources & Field Notes

Last reviewed 2026-08-15. Claims on this page are curated field/resale intelligence. We link official public pages only and do not host copyrighted manuals.

Sources & provenanceShow
Curated field notesShow

The useful split in the field is encoder and controller generation: 314309 carries the white-face higher-resolution encoder kit 314327 for iQ controllers; 313852 is the Magic-Force operator with black-face lower-resolution encoders for pre-iQ boards. Mixing those generations is a common surplus failure. Marketplace titles that only say “Stanley automatic door board” collapse this swing family with Dura-Glide sliding controls. Owner-listed cams and the rubber mount are catalog entries, not proof that every M-Force opening uses the same cam stack. Photograph the operator, encoder face, and controller together.

This is not a repair procedure and not manufacturer-authorized service documentation.

Request part ID · Parts directory · Handing / Configuration Helper · Control & Motor Reference · Voltage Drop
